7000 Picture Window

Replacement

Expansive views and versatile style.

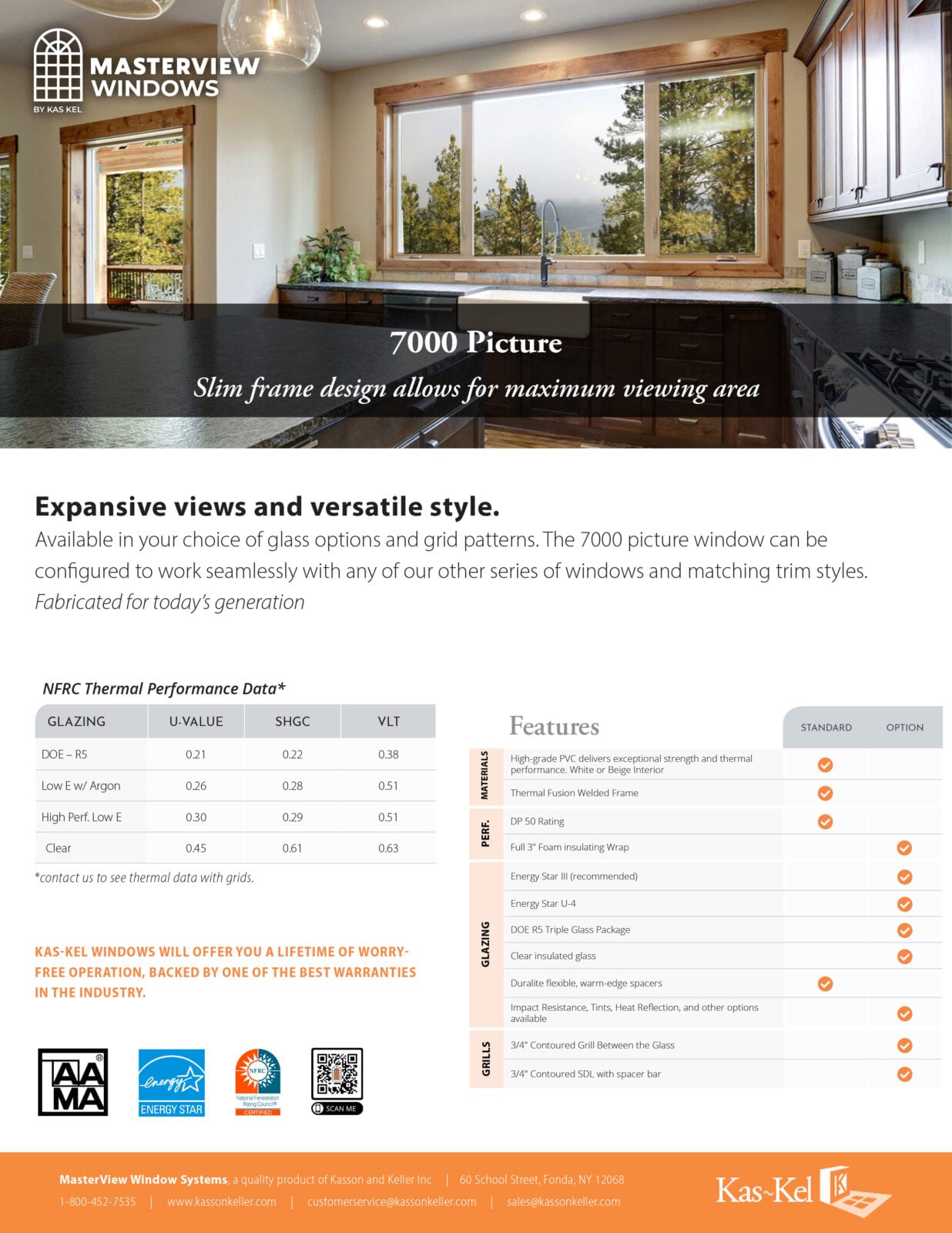

7000 Picture

Available in your choice of glass options and grid patterns. The 7000 replacement picture window can be configured to work seamlessly with any of our other series of windows and matching trim styles . Fabricated for today’s generation

An excellent complement to our CASEMENT and AWNING windows.

ALL ABOUT THE VIEWS

Picture windows are fixed windows that do not open but provide a large unobstructed view ideal for buildings surrounded by vast or outstanding landscapes.

Our picture windows can be installed in single or multi-pane configurations.

7000 Picture
Standard
  • High-grade PVC delivers exceptional strength and thermal performance
  • Thermal Fusion Welded Frame
design
Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Ecoshield Windows Are Built with Advanced Technology Duralite Warm-Edge Spacers

Energy Star III

Energy Star III
Options
  • Energy Star III energy star
    (3/4″) (Recommended)
  • DOE R5energy star
    (1″) Triple Glass Package
  • Clear insulated glass (3/4″)
  • Impact Resistance, Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Standard
  • DP 50 Rating
Options
  • Full 3″ Foam insulating Wrap
winter window performance
Multiple Grill Patterns Available
  • 3/4″ Contoured Grill Between the Glass

    OUR GRILL BETWEEN THE GLASS INCORPORATES A DELUXE SHADOW BAR GIVING THE LOOK AND FEEL OF DIVIDED PANES.

  • 3/4″ Contoured SDL with spacer bar

    OUR SIMULATED DIVIDED LIGHT GRILL INCORPORATES A SPACE GIVING THE LOOK OF TRUE DIVIDED LIGHT

Grill

NFRC Thermal Performance Data – 7000

Glazing U-Value SHGC VLT
DOE – R5 – Triple 0.21 0.22 0.38
Low E w/ Argon 0.26 0.28 0.51
High Perf. Low E 0.30 0.29 0.51
Clear 0.45 0.61 0.63

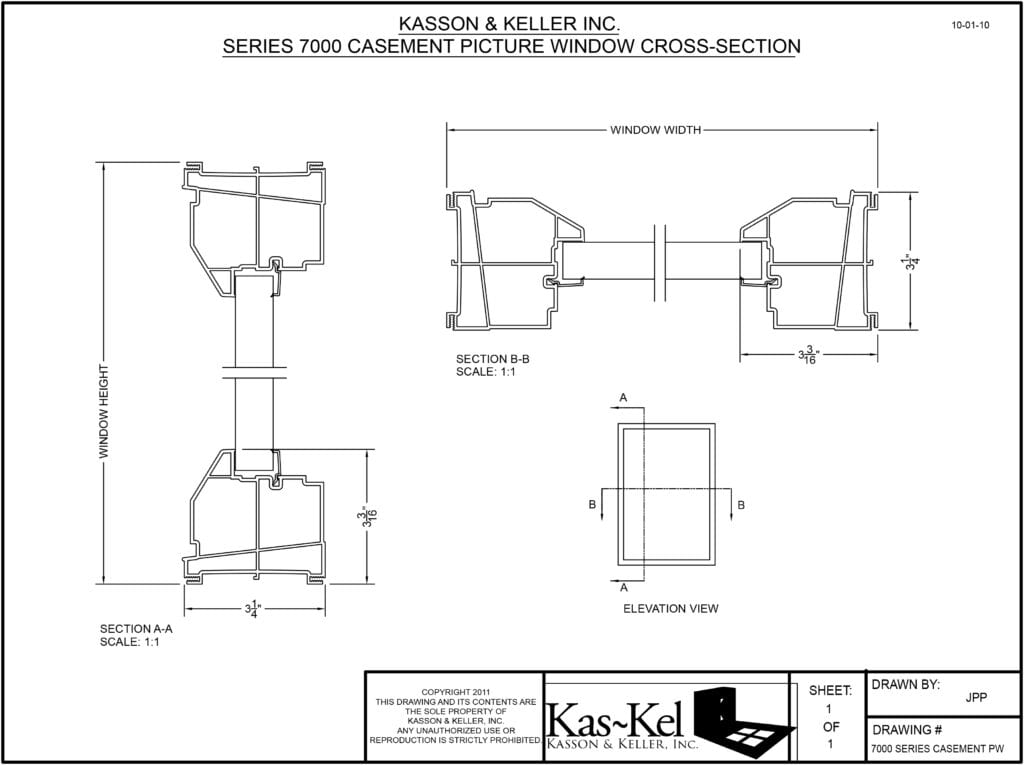

7000 Picture Cross Section
PRODUCT MINIMUM TIP UP SIZE MAXIMUM LIMITS
7000 Picture Window 14 x 20 Maximum 72 x 60, maximum laid up glass option 72″ wide or 72″ height. Maximum UI 144

PLEASE NOTE:

Special Conditions and Design Requirements call for certain glazing components. Architectural specifications and wind loads should always be considered before ordering glazing products. These tooling limits are meant to serve as limits of production capabilities and will not warranty product performance of suitability to their end use. Many glass products that are offered as options are not in stock to fulfill all of the above sizes. Please consult customer Service for questions as to proper use.

Glass must be ordered from an outside source for units larger than 72” one way.

SPECIAL REQUIREMENTS?
Contact Us and We will see if we can Help!

7000 Picture

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Best of Class Warranty

  • Lifetime Mechanical Parts
  • Glass Breakage Coverage
  • Lifetime Insulating Glass
  • Lifetime Vinyl Extrusions

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

girl

Standard Colors

Terrastone
Terrastone
Fieldstone
Fieldstone
Black
Black
Bronze
Bronze
Autumn Red
Autumn Red
Hunter Green
Hunter Green

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

Whether You Are A Builder, Architect or Home Owner, Masterview Replacement Windows Will Offer You A Lifetime Of Worry-Free Operation, Backed By One Of The Best Warranties In The Industry.
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.
