7000 Casement Window

Replacement

engineered for easy operation and maximum ventilation.

Masterview Windows 7000 Casement windows are engineered for easy operation and maximum ventilation.



Multi-point locking provides added safety and security, and all models are available in single and multi-unit combinations.

Modern utility meets classic design

Casement windows are versatile windows that work well in most rooms, combining beauty and high functionality.

A single sash opens outward from hinges along the side of the window frame, similar to how a door operates. A hand crank on the inside of the window frame allows for easy open and close functionalities. Clever design keeps the window from flying open in strong wind or breezes.

Casement windows can also be installed to open to the left or right, giving way to a wide range of aesthetic window arrangements (singular or multi unit design).

Mill Pond Way

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Fusion Welded Sash and Frame
  • Sash Snubbers
  • Exterior Beveled Sash
  • Double weather stripped Sash
  • Single Lever Multi-Point Locking System
design
Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Ecoshield Windows Are Built with Advanced Technology Duralite Warm-Edge Spacers

Energy Star III

Energy Star III

Options

  • Energy Star III energy star
    (3/4″) (Recommended)
  • DOE R5 energy star
    (1″) Triple Glass Package
  • Clear insulated glass (3/4″)
  • Impact Resistance, Tints, Heat Reflection, Triple Glazing and other options available

* Courtesy Truseal Technologies

Standard

  • DP 50 Rating

Options

  • Full 3″ Foam insulating Wrap

winter window performance

Standard

  • Single Lever Multi-Point Locking System

Options

  • Folding Hardware
  • Egress Hardware
  • Sash Limiter Hardware (for Fall Prevention)

Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

Casement Hardware
  • Aluminum Extruded Full View Fiberglass Full Screen

Standard

  • Aluminum Extruded Full View Fiberglass Full Screen

Options

  • Aluminum Screening Material
Casement Screen

Multiple Grill Patterns Available

  • 3/4″ Contoured Grill Between the Glass

    Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes.

  • 3/4″ Contoured SDL with spacer bar

    Our simulated divided light grill incorporates a space giving the look of true divided light

  • 2″ Contoured SDL with spacer bar

     for simulated Double Hung look

Grill

NFRC Thermal Performance Data

Glazing U-Value SHGC VLT CR
DOE – R5 –
Triple Pane
0.19 0.19 0.33 0.77
Energy Star DS U4
Double Strength Glass
0.23 0.23 0.39 0.52
Energy Star III 0.26 0.32 0.44 0.65
Low E w/Argon 0.26 0.24 0.44 0.65
High Perf. Low E 0.29 0.24 0.44 0.61

NFRC Testing Chart – Department of Energy R5 Program – Triple Glazing Package

Effective Date: March 1, 2010

U-FACTOR SHGC VT CR DBL LOW E GAS
SSB WITHOUT GRIDS 0.20 0.19 0.35 74 Y DOUBLE ARGON
SSB WITH GRIDS 0.21 0.18 0.32 74 Y DOUBLE ARGON
DSB WITHOUT GRIDS 0.22 0.19 0.35 74 Y DOUBLE ARGON
DSB WITH GRIDS 0.22 0.18 0.32 74 Y DOUBLE ARGON
PRODUCT MINIMUM TIP UP SIZE MAXIMUM LIMITS
7000 Casement Window 16 3/4 x 19 1/2 Minimum length 2-lite 34″ TTT.
Maximum width single 34″ x 72″ height.
Smaller widths maximum height 72″.

PLEASE NOTE:

Special Conditions and Design Requirements call for certain glazing components. Architectural specifications and wind loads should always be considered before ordering glazing products. These tooling limits are meant to serve as limits of production capabilities and will not warranty product performance of suitability to their end use. Many glass products that are offered as options are not in stock to fulfill all of the above sizes. Please consult customer Service for questions as to proper use.

Glass must be ordered from an outside source for units larger than 72” one way.

SPECIAL REQUIREMENTS?
Contact Us and We will see if we can Help!

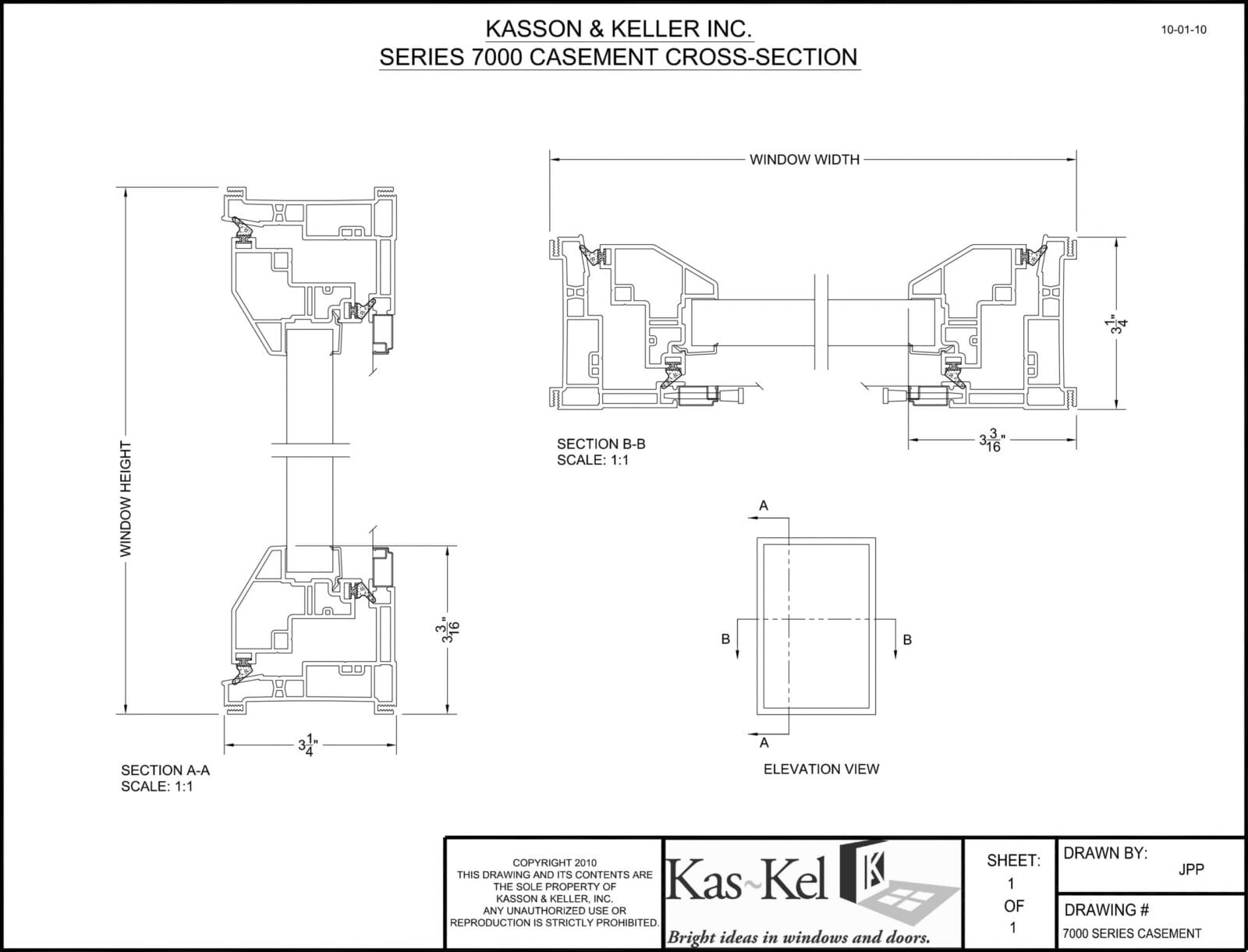

7000 Casement Cross section
7000 Casement

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Best of Class Warranty

  • Lifetime Vinyl Extrusions
  • Lifetime Mechanical Parts
  • Lifetime Insulating Glass
  • Glass Breakage Coverage

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

girl

Standard Colors

Terrastone
Terrastone
Fieldstone
Fieldstone
Black
Black
Bronze
Bronze
Autumn Red
Autumn Red
Hunter Green
Hunter Green

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may
vary from the actual product. Terms and conditions apply.

Whether You Are A Builder, Architect or Homeowner, Masterview Replacement Windows Will Offer You A Lifetime of Worry-Free Operation, Backed By One Of The Best Warranties In The Industry.
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.

Contact Us

today and let us find the right replacement windows for your home.
