700 Casement Windows

engineered for easy operation and maximum ventilation

Description

By design this window combines the beauty and performance you would expect to find in premium windows . Multiple point locking system with a clean fold away handle speaks volumes about our Casements.

Configured with single or multi-unit combination for maximum ventilation. Fabricated for today’s generation.

Modern utility meets classic design

Casement windows are versatile windows that work well in most rooms, combining beauty and high functionality.

A single sash opens outward from hinges along the side of the window frame, similar to how a door operates. A hand crank on the inside of the window frame allows for easy open and close functionalities. Clever design keeps the window from flying open in strong wind or breezes.

Casement windows can also be installed to open to the left or right, giving way to a wide range of aesthetic window arrangements (singular or multi unit design).

Materials

Standard

High-grade PVC delivers exceptional strength and thermal performance
Fusion Welded Sash and Frame
Exterior Beveled Sash
Sash Snubbers
Double weather stripped Sash
Single Lever Multi-Point Locking System

More About Vinyl Construction

Glass Options

Our ES4 Version 7 and E III glazing packages can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Ecoshield Windows Are Built with Advanced Technology Duralite Warm-Edge Spacers

E III

Options

E III
(3/4″) (recommended)
ES4 Version 7
(3/4″)
DOE R5
(1″) Triple Glass Package
Clear insulated glass (3/4″)
Impact Resistance, Tints, Heat Reflection, Impact Resistance, Triple Glazing and other options available

* Courtesy Truseal Technologies

More About Glass Options

Performance

Standard

DP 50 Rating

More about DP Ratings

Hardware

Standard

Single Lever Multi-Point Locking System

Options

Egress Hardware
Folding Hardware
Sash Limiter Hardware (for Fall Prevention)

Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

More about Hardware

Construction

Standard

Nailing fin with J Channel

Options

3″ Cambridge Casing
Brickmold J Channel/ or no J Channel
Primed Applied Solid Pine Extension Jambs 4-9/16″, 6-9/16″ and Custom
1/2″ and 3/4″ Sheetrock Returns

Screens

Standard

Aluminum Extruded Full View Fiberglass Full Screen

Options

Aluminum Screening Material

More about Screen Options

Grills

Multiple Grill Patterns Available

3/4″ Contoured Grill Between the Glass

Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes.
3/4″ Contoured SDL with spacer bar

Our simulated divided light grill incorporates a space giving the look of true divided light
2″ Contoured SDL with spacer bar

for simulated Double Hung look

Grid Patterns

Profiles

Thermal Data

NFRC Thermal Performance Data

Glazing	U-Value	SHGC	VLT	CR
DOE – R5 – Triple Pane	0.19	0.19	0.33	0.77
ES U4 Version 7 Double Strength Glass	0.23	0.23	0.39	0.52
E III	0.26	0.32	0.44	0.65
Low E w/Argon	0.26	0.24	0.44	0.65
High Perf. Low E	0.29	0.24	0.44	0.61

NFRC Testing Chart
Department of Energy R5 Program
Triple Glazing Package

Effective Date: March 1, 2010

		U-FACTOR	SHGC	VT	CR	DBL LOW E	GAS
SSB	WITHOUT GRIDS	0.20	0.19	0.35	74	Y	DOUBLE ARGON
SSB	WITH GRIDS	0.21	0.18	0.32	74	Y	DOUBLE ARGON
DSB	WITHOUT GRIDS	0.22	0.19	0.35	74	Y	DOUBLE ARGON
DSB	WITH GRIDS	0.22	0.18	0.32	74	Y	DOUBLE ARGON

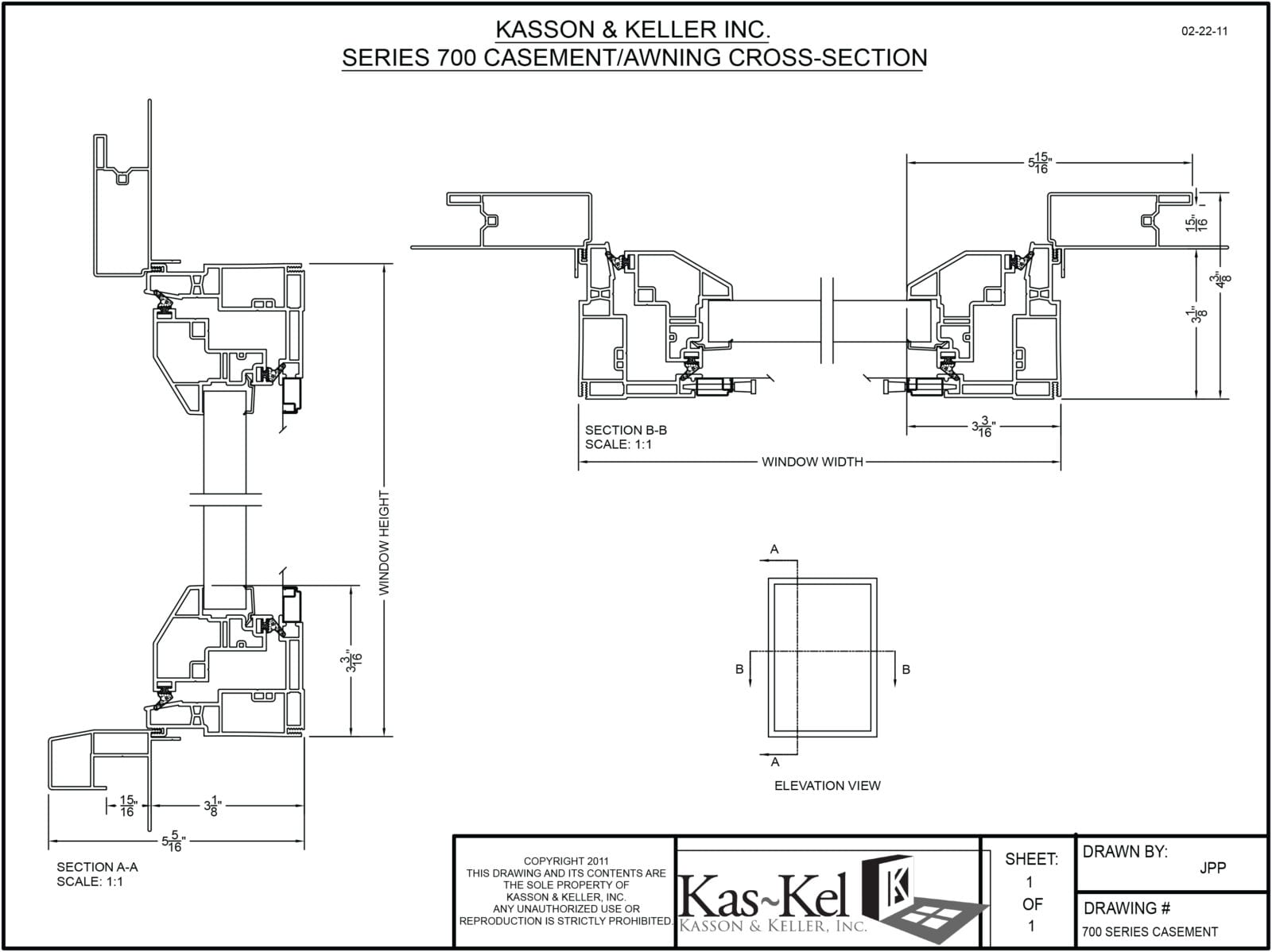

Cross Section

Download pdf

Sizing

Kas-Kel 700 Casement Windows

Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
1-5 / 1-5 x 3-0	16-1/2 x 35-1/2	17 x 36	10 x 29	4-3/4 x 30-7/16	1.004 sq ft	1-5 / 1-5 x 3-0
1-5 / 1-5 x 3-5	16-1/2 x 40-1/2	17 x 41	10 x 34	4-3/4 x 35-7/16	1.169 sq ft	1-5 / 1-5 x 3-5
1-5 / 1-5 x 4-0	16-1/2 x 47-1/2	17 x 48	10 x 41	4-3/4 x 42-7/16	1.4 sq ft	1-5 / 1-5 x 4-0
1-5 / 1-5 x 5-0	16-1/2 x 59-1/2	17 x 60	10 x 53	4-3/4 x 54-7/16	1.796 sq ft	1-5 / 1-5 x 5-0
1-5 / 1-5 x 6-0	16-1/2 x 71-1/2	17 x 72	10 x 65	4-3/4 x 66-7/16	2.192 sq ft	1-5 / 1-5 x 6-0
Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
1-8 / 1-8 x 3-0	19-1/2 x 35-1/2	20 x 36	13 x 29	7-3/4 x 30-7/16	1.638 sq ft	1-8 / 1-8 x 3-0
1-8 / 1-8 x 3-5	19-1/2 x 40-1/2	20 x 41	13 x 34	7-3/4 x 35-7/16	1.907 sq ft	1-8 / 1-8 x 3-5
1-8 / 1-8 x 4-0	19-1/2 x 47-1/2	20 x 48	13 x 41	7-3/4 x 42-7/16	2.284 sq ft	1-8 / 1-8 x 4-0
1-8 / 1-8 x 5-0	19-1/2 x 59-1/2	20 x 60	13 x 53	7-3/4 x 54-7/16	2.93 sq ft	1-8 / 1-8 x 5-0
1-8 / 1-8 x 6-0	19-1/2 x 71-1/2	20 x 72	13 x 65	7-3/4 x 66-7/16	3.576 sq ft	1-8 / 1-8 x 6-0
Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
2-0 / 2-0 x 3-0	23-1/2 x 35-1/2	24 x 36	17 x 29	11-3/4 x 30-7/16	2.484 sq ft	2-0 / 2-0 x 3-0
2-0 / 2-0 x 3-5	23-1/2 x 40-1/2	24 x 41	17 x 34	11-3/4 x 35-7/16	2.892 sq ft	2-0 / 2-0 x 3-5
2-0 / 2-0 x 4-0	23-1/2 x 47-1/2	24 x 48	17 x 41	11-3/4 x 42-7/16	3.3463 sq ft	2-0 / 2-0 x 4-0
2-0 / 2-0 x 5-0	23-1/2 x 59-1/2	24 x 60	17 x 53	11-3/4 x 54-7/16	4.442 sq ft	2-0 / 2-0 x 5-0
2-0 / 2-0 x 6-0	23-1/2 x 71-1/2	24 x 72	17 x 65	11-3/4 x 66-7/16	5.421 sq ft	2-0 / 2-0 x 6-0
Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
2-4 / 2-4 x 3-0	27-1/2 x 35-1/2	28 x 36	21 x 29	15-3/4 x 30-7/16	3.329 sq ft	2-4 / 2-4 x 3-0
2-4 / 2-4 x 3-5	27-1/2 x 40-1/2	28 x 41	21 x 34	15-3/4 x 35-7/16	3.876 sq ft	2-4 / 2-4 x 3-5
2-4 / 2-4 x 4-0	27-1/2 x 47-1/2	28 x 48	21 x 41	15-3/4 x 42-7/16	4.642 sq ft	2-4 / 2-4 x 4-0
2-4 / 2-4 x 4-0 E	27-1/2 x 47-1/2	28 x 48	21 x 41	15-3/4 x 42-7/16	5.968 sq ft	2-4 / 2-4 x 4-0 E
2-4 / 2-4 x 5-0	27-1/2 x 59-1/2	28 x 60	21 x 53	15-3/4 x 59-1/2	5.954 sq ft	2-4 / 2-4 x 5-0
2-4 / 2-4 x 6-0	27-1/2 x 71-1/2	28 x 72	21 x 65	15-3/4 x 66-7/16	7.267 sq ft	2-4 / 2-4 x 6-0
