2200 Rolling Window

Replacement

built for long life and smooth fingertip operation

2200 Rolling



Materview Windows Rolling Windows are built on precision-calibrated rollers for long life and smooth fingertip operation.



They’re ideal for porches, family rooms and multi-family dwellings.



Sash is easily removed for cleaning.

Horizontal views and maximum daylighting

Rolling windows make the most of a horizontal view while allowing for ventilation through a single or multiple sashes depending on the configuration. Maximize natural light filtration indoors with a rolling window.

Also called sliding windows, the rolling window involves at least two sashes side by side. The sashes can be opened in three configurations, either one is open while the adjacent one is closed, or both sashes can be opened simultaneously.

In a three-sash combination, the center sash remains stationary while the two sashes on either side can be rolled open for ventilation.

Rolling Window
Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

  • Energy Star III energy star

Options

  • Energy Star U-4  energy star
  • Clear insulated glass (3/4″)
  • Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

Energy Star III

Energy Star III

Standard

  • DP 35 Rating

Options

  • DP 40 Rating
  • DP 50 Rating
  • Full 3″ Foam insulating Wrap
    (install required replacements AMA)
winter window performance

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Fusion Welded Sash and Frame
  • Sloped Sill with Interlocking Leg
  • Both Sash Tilt In/Full Screen
design

Options

    Vinyl Components

    Standard

    • Masterview Rolling Windows are built on precision-calibrated rollers for long life and smooth fingertip operation. Sash is easily removed for cleaning.

    Superior Cam Lock

    • Our Cam Locks are made of alloyed cast steel to stand up to frequent use.
      (inferior vinyl windows have plastic locks)
    • All windows over 28 inches tall have 2 sash locks for maximum protection
    • Produced in white or beige to seamlessly match your window frame
    • Increased leverage assures a  weather tight seal when locked

    Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

    Standard

    • Aluminum Extruded Fiberglass 1/2 screen

    Options

    • Aluminum Framed Fiberglass Full Screen
    • Full Flexscreens
    • Aluminum Screening Material
    rolling - screen

    Multiple Grill Patterns Available

    • 3/4″ Contoured Grill Between the Glass

      Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes

    • 3/4″ Contoured SDL with spacer bar

      Our simulated divided light grill incorporates a space giving the look of true divided light

    Grill

    NFRC Thermal Performance Data

    GLAZING U-Factor SHGC VTT CR
    ES U4 Version 7
    Double Strength Glass
    E III
    Low E with Argon .27 .28 .51 .63
    High Performance Low E .31 .28 .51 .59

    NFRC Thermal Performance Data (with Grids)

    GLAZING U-Factor SHGC VTT CR
    ES U4 Version 7
    Double Strength Glass
    E III
    Low E with Argon .27 .25 .45 .63
    High Performance Low E .32 .25 .45 .56

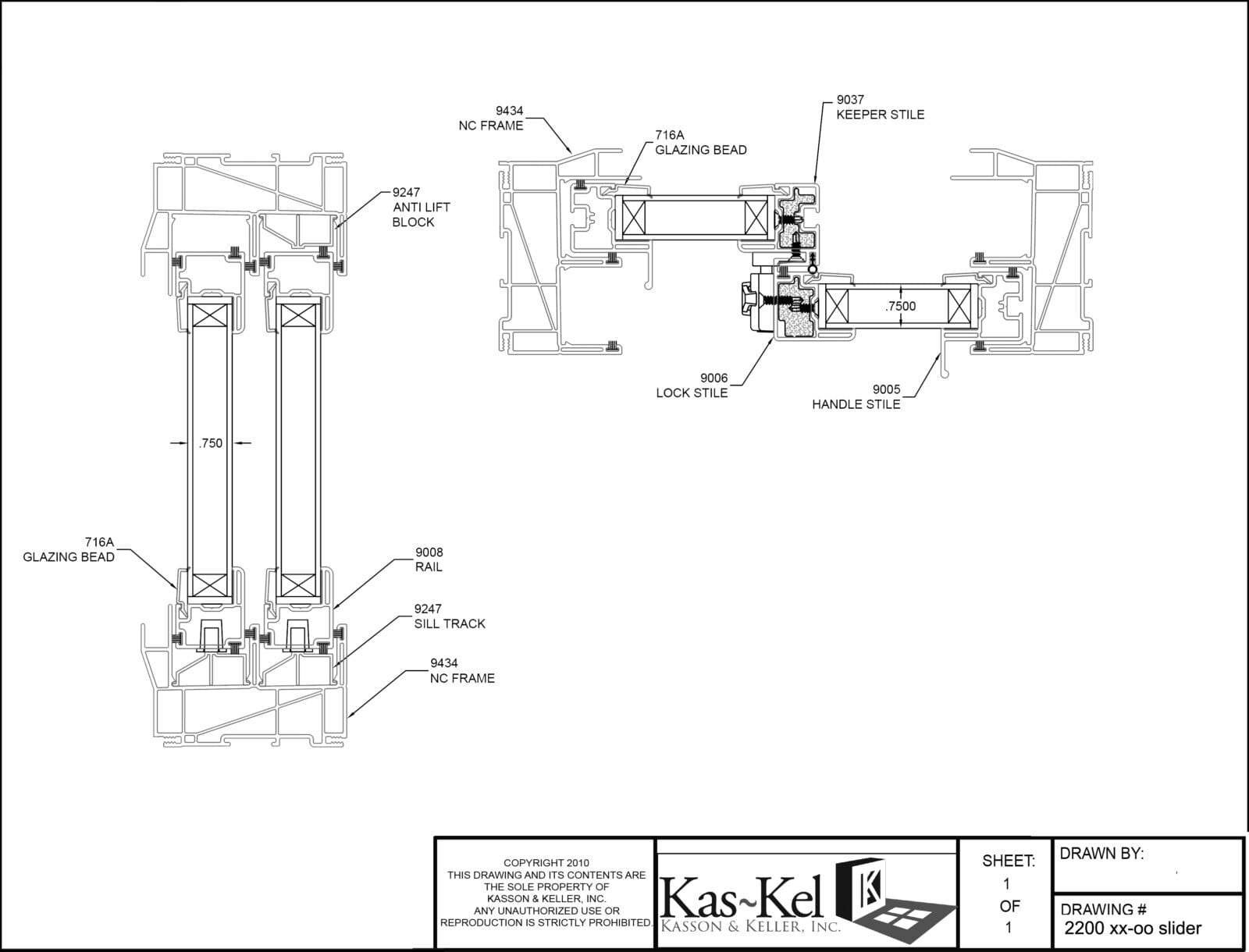

    2200 Rolling Cross Section
    PRODUCT MINIMUM TIP UP SIZE MAXIMUM LIMITS
    2200 Slide 2-L 26 3/4 x 15 1/4 Maximum 95 3/4 x 63  TTT. Maximum. Maximum UI 156
    2200 Slide 3-L (Equal Lites) 35 1/2 x 15 1/4 Maximum 115 x 63  TTT. Maximum. Maximum UI 165
    2200 Slide 3-L (1/4 – 1/2 – 1/4) 47 x 15 1/4 Maximum 115 x 63  TTT. Maximum. Maximum UI 165

    PLEASE NOTE:

    Special Conditions and Design Requirements call for certain glazing components. Architectural specifications and wind loads should always be considered before ordering glazing products. These tooling limits are meant to serve as limits of production capabilities and will not warranty product performance of suitability to their end use. Many glass products that are offered as options are not in stock to fulfill all of the above sizes. Please consult customer Service for questions as to proper use.

    Glass must be ordered from an outside source for units larger than 72” one way.

    SPECIAL REQUIREMENTS?
    Contact Us and We will see if we can Help!

    2200 Rolling

    Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

    MADE IN AMERICA

    Best of Class Warranty

    • Lifetime Mechanical Parts
    • Lifetime Vinyl Extrusions
    • Lifetime Insulating Glass
    • Glass Breakage Coverage

    Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

    MADE IN AMERICA

    window girl

    Standard Exterior Colors

    Terrastone
    Terrastone
    Fieldstone
    Fieldstone
    Black
    Black
    Bronze
    Bronze
    Autumn Red
    Autumn Red
    Hunter Green
    Hunter Green

    Have a color in mind? We can custom match it!

    *All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

    WHETHER YOU ARE A BUILDER, ARCHITECT OR HOME OWNER, MASTERVIEW REPLACEMENT WINDOWS WILL OFFER YOU A LIFETIME OF WORRY-FREE OPERATION, BACKED BY ONE OF THE BEST WARRANTIES IN THE INDUSTRY.
    AAMA Logo
    NFRC Certified

    * Rating, qualification, or compliancy is dependent on selected options and window style.
